Type

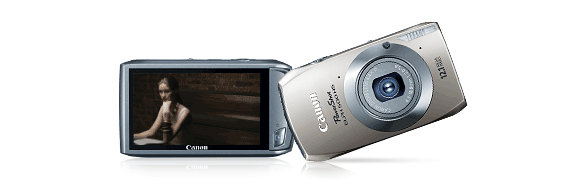

Compact digital still camera with built-in flash, 4.4x Optical Zoom & 4x Digital & 18x Combined Zoom and Optical Image Stabilizer
Image Capture Device
Type
12.1 Megapixel, 1/2.3-inch CMOS
Total Pixels
Approx. 12.8 Megapixels
Effective Pixels
Approx. 12.1 Megapixels
Lens
Focal Length
4.3 (W) - 18.8mm (T) (35 mm film equivalent: 24 (W) - 105mm (T))
Digital Zoom
Approx. 4.0x (Up to approx. 18x in combination with the optical zoom)
Focusing Range
Normal AF: 2.0 in. (5cm) - infinity (W); 1.3 ft (40 cm) - infinity (T)
Macro AF: 1.2 in. - 1.6 ft (3-50cm) (W)
Autofocus System
TTL Autofocus
Viewfinders
Optical Viewfinder
N/A
LCD Monitor
3.2-inch TFT LCD with wide viewing angle and Touch Panel Technology
LCD Pixels
Approx. 461,000 dots
LCD Coverage
Approx. 100%
Aperture and Shutter
Maximum Aperture
f/2.0 (W) - f/5.8 (T)
Shutter Speed
1-1/1600sec.
15-1/1600 sec. (Total shutter speed range)
Exposure Control
Sensitivity
Auto*, ISO 100/200/400/800/1600/3200
*Camera automatically sets the optimal ISO speed according to shooting mode.
Light Metering Method
Evaluative*, Center weighted average, Spot**
* Facial brightness is evaluated in Face AiAF.
** Fixed to center.
Exposure Control Method
AE Lock
Exposure Compensation
+/-2 stops in 1/3-stop increments
White Balance
White Balance Control
Auto*, Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Custom
* Facial color is evaluated in Face AiAF
Flash
Built-in Flash
Auto, Red-eye Reduction, Auto Red-eye Correction, Flash On, Flash Off; FE Lock, Smart Flash
Flash Range
1.6 - 16 ft. (50cm-5.0m) (W), 1.6 - 6.6 ft. (50cm-2.0m) (T)
* Image brightness my diminish depending on the shooting distance
Recycling Time
10 sec. or less (battery voltage: 3.7 V)
Flash Exposure Compensation
N/A
Shooting Specifications
Shooting Modes
P, Auto1, Av, Tv, Movie Digest, Portrait, Kids & Pets, Smart Shutter2, High-speed Burst, Best Image Selection, Handheld Night Scene, Low Light, Fish-eye Effect, Miniature Effect, Toy Camera Effect, Creative Light Effect, Monochrome, Super Vivid, Poster Effect, Color Accent, Color Swap, Beach, Foliage, Snow, Fireworks, Movie3
1Smart Auto also available for videos
2Smile, Wink Self-timer, Face Self-timer
3Standard, iFrame Movie, Super Slow Motion Movie, Miniature Effect for Movies (Videos are recorded by pressing the movie button)
Photo Effects
My colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin, Darker Skin, Vivid Blue, Vivid Green, Vivid Red, Custom Color adjustment of contrast, sharpness, saturation, red, green, blue and skin tone are available
Self Timer
Approx. 10-sec. delay/approx. 2-sec. delay/custom
Shooting start time (0 - 10 sec. (in one-second increments), 20/25/30 sec.) and number of shots (1 - 10 shots (in one-shot increments)) can be specified.
Wireless Control
N/A
Continuous Shooting
Approx. 3.4 shots/sec. (in P mode)
Approx. 8.2 shots/sec. (in High-speed Burst)
Image Storage
Storage Media
SD/SDHC/SDXC memory card, Eye-Fi, MultiMediaCard, MMCplus card, HC MMCplus card
File Format
Design rule for camera file system, DPOF Version 1.1 compliant
Image Recording Format
Normal, Fine
JPEG Compression Mode
Still Image: Exif 2.3 (JPEG)
Video: MOV (Image: H.264; Audio: Linear PCM (stereo))
Number of Recording Pixels
16:9
4000 x 2248 (Large), 2816 x 1584 (Medium 1), 1920 x 1080 (Medium 2), 640 x 360 (Small)
3:2
4000 x 2664 (Large), 2816 x 1880 (Medium 1), 1600 x 1064 (Medium 2), 640 X 424 (Small)
4:3
4000 x 3000 (Large), 2816 x 2112 (Medium 1), 1600 x 1200 (Medium 2), 640 x 480 (Small)
1:1
2992 x 2992 (Large), 2112 x 2112 (Medium 1), 1200 x 1200 (Medium 2), 480 x 480 (Small)
Number of Recordable Images
Image data
16:9 3:2 4:3
File Size (KB) 4 GB 16 GB File Size (KB) 4 GB 16 GB File Size (KB) 4 GB 16 GB
Large (L) F 2,311 1,630 6,677 2,738 1,386 5,680 3,084 1,231 5,042
N 1,105 3,352 13,727 1,309 2,873 11,766 1,474 2,514 10,295
Medium 1(M1) F 1,210 3,094 12,671 1,436 2,623 10,743 1,620 2,320 9,503
N 585 6,034 24,709 694 5,247 21,486 780 4,641 19,007
Medium 2(M2) F 604 6,034 24,709 496 7,099 29,070 588 6,352 26,010
N 300 10,972 44,927 246 13,410 54,911 278 12,069 49,420
Small (S) F 113 24,139 98,840 133 20,116 82,367 150 20,116 82,367
N 63 40,233 164,734 75 30,174 123,550 84 30,174 123,550
Medium* (M) F N/A N/A N/A N/A N/A N/A 836 4,310 17,649
N N/A N/A N/A N/A N/A N/A 418 8,046 32,946
1:1
File Size (KB) 4 GB 16 GB
Large (L) F 2,301 1,652 6,769
N 1,100 3,352 13,727
Medium 1 (M1) F 1,210 3,094 12,671
N 585 6,034 24,709
Medium 2 (M2) F 420 8,046 32,946
N 208 15,087 61,775
Small (S) F 113 24,139 98,840
N 63 40,233 164,734
Medium* (M) F NA NA NA
N NA NA NA
* When in High-Speed Burst, Best Image Selection or Low Light
Note: N=Normal F=Fine
Storage Capacity varies depending on camera settings. This data is estimated from Canon's standard shooting conditions. Figures for Movie Mode represent total capacity of the particular media.
Time of Recordable Movies
Movie data
Standard
Full HD: 1920 x 1080 HD: 1280 x 720 640 x 480 320 x 240
24 fps 30 fps 30 fps 30 fps
Video Size (KB/sec.,) 4,355 3,054 1,416 495
4GB 14 min.
34 sec. 20 min.
43 sec. 43 min.
43 sec. 1 hr. 58 min.
19 sec.
16GB 59 min. 40 sec. 1 hr. 24 min. 54 sec. 2 hr. 59 min. 3 sec. 8 hr. 4 min. 30 sec.
iFrame Super Slow Motion Movie Miniature Effect
HD: 1280 x 720 640 x 480 320 x 240 HD: 1280 x 720 640 x 480
30 fps 120 fps 240 fps 5x 10x 20x 5x 10x 20x
6 fps 3 fps 1.5 fps 6 fps 3 fps 1.5 fps
Video Size (KB/sec.,) 4,701 4,914 2,457 537 287 143 246 123 61
4GB 13 min. 35 sec. 12 min. 58 sec. 25 min. 46 sec. 1 hr. 45 min. 52 sec. 3 hr. 21 min. 9 sec. 5 hr. 35 min. 16 sec. 3 hr. 43 min. 30 sec. 6 hr. 42 min. 20 sec. 11 hr. 10 min. 33 sec.
16GB 55 min. 38 sec. 53 min. 7 sec. 1 hr. 45 min. 35 sec. 7 hr. 13 min. 30 sec. 13 hr. 43 min. 40 sec. 22 hr. 52 min. 47 sec. 15 hr. 15 min. 11 sec. 27 hr. 27 min. 20 sec. 45 hr. 45 min. 35 sec.
Playback Specifications
Playback Modes File
- Stills & Images: Auto Rotate (Automatic vertical/horizontal detection), Resume Playback, Image Advance (Operation Tools, Transition effects, Scroll Display), Rotate, Favorites, My Category, Smart Shuffle, Filtered Playback, Slide Show (Playback Interval, Repeat, Effect, Playlist)
- Still Images: Single, Index (4-100 thumbnails), Magnification (2-10x), Information Display, Red-eye Correction, i-Contrast, Trimming, Resize, My Colors, Focus Check, Histogram, Overexposure Warning
- Videos: Normal Playback*, Slow Motion**, Special Playback, Editing, Resume
* Auto settings available in 5 levels
** 5 levels (including normal playback), sound not available.
Erasing Specifications
Erase Modes
Select image, select range, all images (all filtered images)
- The image data in the memory card stored with the Design rule for Camera File systems format can be erased (however, protected images cannot be erased).
- Using the Movie editing function, beginning/end sections of the movie (1 sec. increments) can be deleted.
Interfaces
Computer Interface
USB 2.0 Hi-Speed USB (dedicated female connector with unified type of digital, audio and video) mini-B compatible.
Video Out
NTSC/PAL (dedicated connector (female) with unified type of digital, audio and video)
Mini-HDMI connector
Audio Out
Stereo (dedicated connector (female) unified type of digital, audio, and video)
Other
Memory card slot; direct connection to Canon SELPHY Compact Photo Printers, PIXMA Inkjet Photo Printers and PictBridge-compatible printers via camera's USB 2.0 Hi-speed cable
Power Source
Battery Pack NB-6L, Compact Power Adapter CA-DC10 (when used with DC Couple DR-40)
Shooting Capacity
Approx. 180 shots
Playback Time
Approx. 4 hours
Physical Specifications
Operating Temperature
32-104°F/0-40°C
Operating Humidity
10-90%
Dimensions (W x H x D)
3.96 x 2.18 x 0.98 in / 100.6 x 55.4 x 25.0mm
Weight
6.53 oz. / 185g (including the battery and memory card)
5.82 oz. / 165g (camera body only)
PRICE $280
